Guangzhou Xingjin Fire Equipment Co.,Ltd. info@xingjin-fire.com 86--18011936582
제품 세부 정보
원래 장소: 중국 광저우
브랜드 이름: XINGJIN
인증: CMA,CNAS,ILAC-MRA,CCC
모델 번호: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2, QMP70/5.6, QMP90/5.6, QMP120/5
지불 및 배송 조건
최소 주문 수량: 2세트 시스템
가격: Pricing based on quantity
포장 세부 사항: 거품 부대 또는 종이를 가진 나무 상자 또는 합판 외부 상자
배달 시간: 제품 수량에 따라
지불 조건: T/T,L/C
공급 능력: 30000set/월
실린더 용량: |
4 |
가스의 능력: |
3 |
대리인: |
시간 |
보관 압력: |
4 |
장치 공기 소스 압력을 구동합니다: |
6 |
시스템 작업 전원 공급 장치: |
에이 |
시스템 보호 제한 영역: |
8 |
시스템 보호 제한 볼륨: |
3 |
실린더 용량: |
4 |
가스의 능력: |
3 |
대리인: |
시간 |
보관 압력: |
4 |
장치 공기 소스 압력을 구동합니다: |
6 |
시스템 작업 전원 공급 장치: |
에이 |
시스템 보호 제한 영역: |
8 |
시스템 보호 제한 볼륨: |
3 |

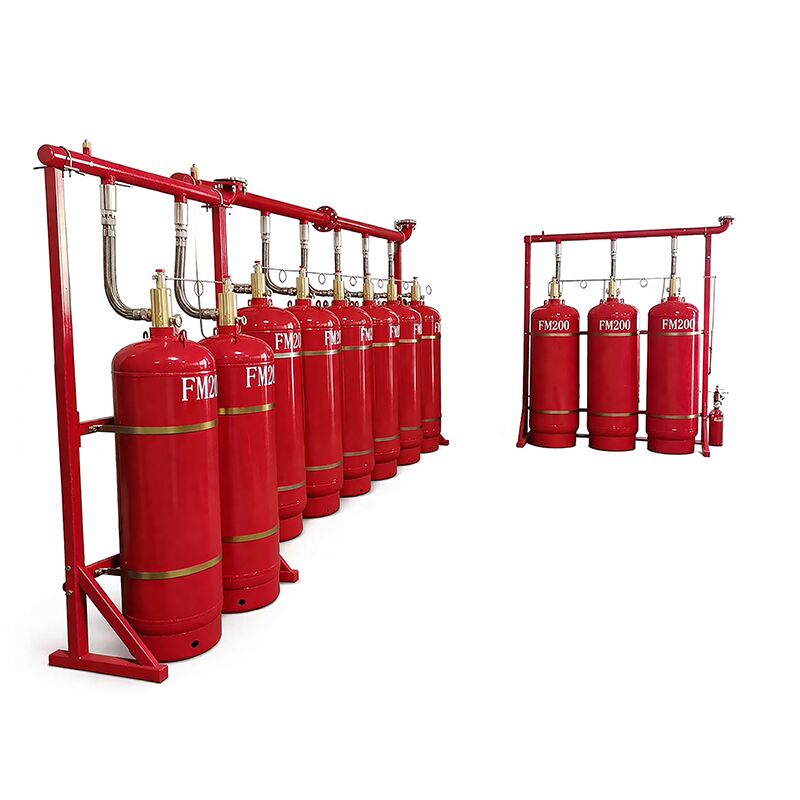

Pipe network Suspended Extinguishing Equipment
Product Introduction:
The FM200 Pipe Network Fire Suppression System (HFC-227ea) is a globally recognized clean agent fire protection solution. FM200 is a colorless, odorless, non-conductive gas with zero ozone depletion potential (ODP), making it an environmentally friendly alternative to halon systems.
This system adopts a multi-cylinder configuration combined with a pipe network, enabling protection for single or multiple zones. It is ideal for commercial and industrial applications where fast response and asset protection are critical, such as data centers, power facilities, and mission-critical environments.
|
Name of fire extinguishing agent |
Heptafluoropropane |
|||
|
Chemical composition |
CF3CHFCF3 |
|||
|
Conveying method |
Prefabricated |
Pipe network type |
||
|
Assembly method |
Cabinet type |
Suspended type |
Internal storage pressure |
External storage pressure |
|
Construction method |
Flexible to install and takes up little space |
Independent gas cylinder room |
||
|
Pharmaceutical storage pressure |
2.5/1.6MPa |
4.2/5.6MPa |
0.3MPa |
|
|
Danger of handling/long-term storage |
The risk of handling and long-term storage is relatively low, and the safety factor of storage detection is relatively high |
|||
|
Design selectivity |
Small area, low construction difficulty and movable |
Large area, multiple protective zones, conveying distance 30-80 meters |
Large area, multiple protection zones, and conveying distance up to 200 meters |
|
|
Dosage of medicine |
For a single area |
It is used for combined distribution and in relatively small quantities |
||
|
Advantages |
Takes up little space, is easy to install, has low construction costs and good fire extinguishing effects |
Multiple protection zones share the same agent, with low cost and good fire extinguishing effect |
||
|
Application |
Computer rooms, distribution rooms, archives rooms, financial institutions, government units, oil depots, etc |
|||
| System classification: According to the use requirements, it can be composed of independent unit systems, and the combined distribution system can implement fire protection for single zone and multiple zones respectively. When designing and calculating this type of system, the fire extinguishing agent consumption is calculated based on the agent consumption for the largest protected area, and the maximum number of protected areas shall not exceed eight. |
|
A single cylinder system protecting one hazard zone, suitable for independent areas
One system protects multiple zones (up to 8 zones) using selector valves, reducing overall cost
