HFC - 227ea(FM 200)- Clean Gas Based Fire Suppression System

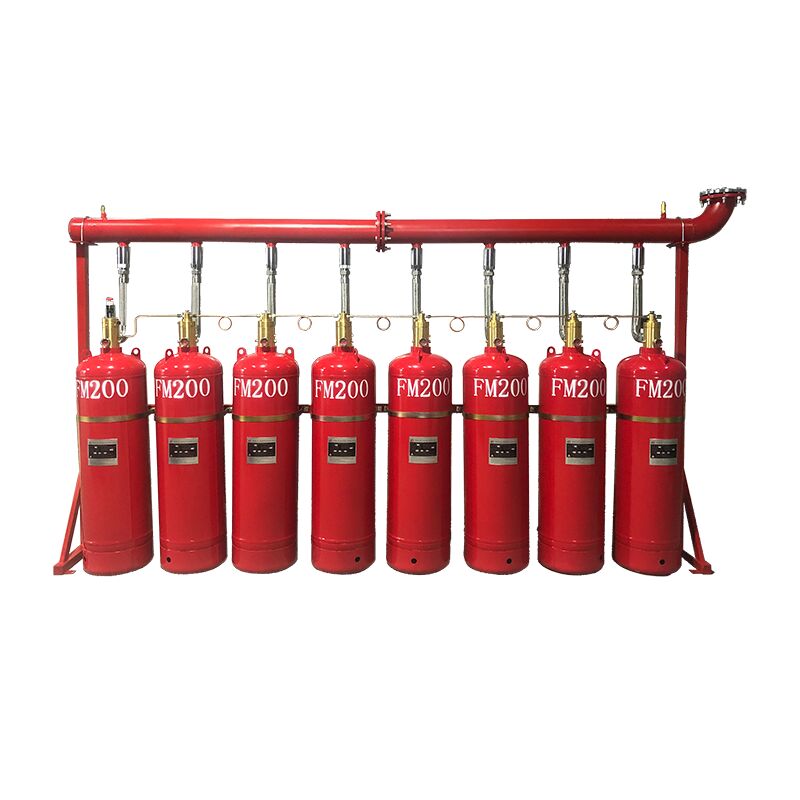

FM200 Pipeline System

Introduction:
    HFC-227EA(FM-200) Agent is a compound of carbon, fluorine and hydrogen; it is suitable for the protection of most occupied area. The physical properties of HFC-227EA in its molecule vaporizing stage help cool flame temperature rapidly; And the release of free radicals and elements eventually put out the fire with its physical and chemical mechanisms while remaining available oxygen.

  The agent is considered non-toxic to humans so that it allows personnel to leave safely when the system is acting in occupied space. HFC-227EA is also green ,noncorrosive and electrically non-conductive with zero ozone depleting potential. The system achieves fire extinguishing concentrations in 10 seconds or less, suppressing ordinary combustible, electrical, and flammable liquid fires before they cause a catastrophe. This means less damage,lower cost to business with minimum disruption.

Automatic Control Mode:
1. Setting control mode selection key and fire extinguishing controller to the"auto" position.

2. When a fire breaks out, the zone temperature and smoke detector activate and send out fire signal to extinguishing control panel to activate the combined sound and light alarm after the logic analysis. At the same time, the detectors sends out a linkage command at the same time to close the linkage device.
3. The fire extinguishing command is issued, the starting valve is opened to release the starting gas, and the starting gas is opened through the control gas pipeline valves. HFC-227EA(FM-200) Agent is discharged though container valves and extinguishes fire.

Main Components of the System:
  The heptafluoropropane automatic fire extinguishing system consists of extinguishing agent cylinder groups, supports, driving gas cylinder groups, container valves, liquid check valves, gas check valves, driving devices, gas supply control pipelines, manifolds, selector valves, tees, reducing tees, elbows, reducing elbows, flanges, safety valves, signal feedback devices, piping networks, nozzles, extinguishing agent, fire detectors, gas extinguishing controllers, audible and visual alarms, alarm bells, gas release indicator lights, emergency start/stop buttons, etc.
  According to the usage requirements, it can be composed of independent unit systems and combined distribution systems to respectively implement fire protection for single zones and multiple zones. The gas fire extinguishing agent storage cylinders of the piped heptafluoropropane fire extinguishing system are usually placed in a dedicated cylinder room and connected through a pipeline network. When a fire occurs, the fire extinguishing agent is transported from the cylinder room to the protected area that needs to be extinguished and then discharged through nozzles to put out the fire.

System Application Scope
  The heptafluoropropane gas fire extinguishing system has excellent cleanliness - it completely vaporizes in the atmosphere without leaving any residue, and has good gas-phase electrical insulation. It is suitable for extinguishing electrical fires, liquid fires, fusible solid fires, and solid surface fires by total flooding. The heptafluoropropane gas fire extinguishing system has the characteristics of not occupying space, easy installation, being clean and environmentally friendly, low cost, and not damaging equipment.
  It is mainly applicable to the protection of various computer rooms, communication rooms, transformer and distribution rooms, precision instrument rooms, generator rooms, oil depots, chemical flammable material warehouses, as well as libraries, databases, archives, vaults, archives, program-controlled switch rooms, television and broadcasting centers, and important places such as financial institutions and government agencies.
Suitable for extinguishing the following types of fires:

(1) Electrical fires;

(2) Liquid surface fires or fires involving fusible solids;

(3) Solid surface fires;

(4) Gas fires where the gas supply can be cut off before extinguishing.

Not suitable for extinguishing fires involving the following substances:

(1) Chemicals and mixtures containing oxidizers, such as nitrocellulose, sodium nitrate, etc.;

(2) Active metals, such as potassium, sodium, magnesium, titanium, zirconium, uranium, etc.;

(3) Metal hydrides, such as potassium hydride, sodium hydride, etc.;

(4) Chemical substances that can decompose spontaneously, such as hydrogen peroxide, hydrazine, etc.



Packaging and transportation of gas cylinders:
Packaging:
The gas cylinders will be carefully packaged to ensure safe delivery and handling. The packaging will include the following materials: heavy-duty cardboard boxes, foam packaging, protective foam, and instructions
Transportation:
We offer global shipping for our gas cylinders. The following transportation methods are available for selection:
All goods will be sent using reliable and trustworthy express delivery services to ensure timely and safe delivery. Once their order is dispatched, the customer will receive a tracking number via email.

Special handling instructions:
If your goods have any special handling instructions, please contact us at least 24 hours before your order is dispatched. We will do our best to meet your requirements.
